3.05 Melody On Off¶
- Dependent on meteorological data a voice is set on or off.
- This is handy for a meteorological parameter like global radiation. At night there is no global radiation and therefore it is zero. To prevent that the same tone is repeated over and over again the voice can be paused.
- Weather period from the 1.8.2019 to 28.8.2019
from pyknon.genmidi import Midi
from pyknon.music import Rest, Note, NoteSeq
from music_generation import*
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as plticker
from datetime import date
Read Meteorological Data¶
def read_meteo_data(fName):
colNames = ['Stao','time', 'T_Boden_20cm', 'Flash_30km', 'Glob_rad', 'QFE','T_2m','Rain_Sum','H_rel','visibi','V_wind','direction_wind']
df = pd.read_csv(fName,sep=';', skiprows=3, names=colNames, na_values='-')
print(df.head())
return df
fPath = '/mnt/daten/04_Schule/42_Kanti/Matrua/Music_generation/Organisation/MeteoSchweiz/Daten/'
fName = 'order_75330_data.txt'
dM = read_meteo_data(fPath+fName)
NT, MP = dM.shape
Stao time T_Boden_20cm Flash_30km Glob_rad QFE T_2m 0 KLO 201908010000 21.5 0 2 969.5 15.3 1 KLO 201908010010 21.5 0 2 969.5 14.9 2 KLO 201908010020 21.5 0 2 969.5 14.6 3 KLO 201908010030 21.5 0 2 969.5 14.6 4 KLO 201908010040 21.4 0 2 969.6 13.7 Rain_Sum H_rel visibi V_wind direction_wind 0 0.0 80.4 20000.0 0.9 117 1 0.0 82.4 20000.0 1.1 98 2 0.0 83.7 20000.0 1.0 121 3 0.0 82.7 20000.0 1.2 119 4 0.0 88.8 20000.0 1.0 173
Chords and scales¶
C = np.array([ 0, 4, 7])
Cm = np.array([ 0, 3, 7])
Cdim = np.array([ 0, 3, 6])
CM7 = np.array([ 0, 4, 7, 11])
C7 = np.array([ 0, 4, 7, 10])
Cm7 = np.array([ 0, 3, 7, 10])
Cdim7 = np.array([ 0, 3, 6, 10])
Cdim6 = np.array([ 0, 3, 6, 9 ])
C6 = np.array([ 0, 4, 7, 9 ]) # inversion of Am7
Cm6 = np.array([ 0, 3, 7, 9 ])
Csus4 = np.array([ 0, 5, 7])
Csus2 = np.array([ 0, 2, 7])
Csus47= np.array([ 0, 5, 7, 10])
P = np.array([ 0,7]) # Power chord (Perfect unison, Perfect fifth)
B = np.array([ 0]) # Bass (Perfect unison)
major = np.array([ 0, 2, 4, 5, 7, 9, 11])
minor = np.array([ 0, 2, 3, 5, 7, 8, 10])
blues = np.array([ 0, 3, 5, 6, 7, 10])
on_off¶
- Mutes and unmutes voices dependent of the meteorological input data.
- With on_range defines when a voice plays.
- on_off is applied after the met_transform. So the on_range must be adjusted accordingly.
def on_off(meteo, on_range, volumes, rythem, mpb):
met_resolution = 10
cum_ryth = np.concatenate((np.asarray([0]),np.cumsum(rythem)))[:-1] # add 0 at beginig remove last element
i_data = (cum_ryth*4 * (mpb /met_resolution)).astype(int) # calculate index of the data
for npn in range(len(i_data)):
value = meteo[ i_data[npn] ] # get value of the meteo data
if on_range[0] < value < on_range[1]: pass # do nothing when in on_range
else: volumes[npn] = 0 # set volume to zero when out of range
return volumes
tune 305_A¶
- Period from the 11.8 to 15.8.2019.
- Temperature and pressure played by pianos.
- Timpani regulated by the rain.
- A Music box plays the melody of the global radiation. During night the melody is paused.
def tune_305_A():
tune_name = 'tune_305_A'
np.random.seed(80)
bar, bpb = 20, 4 # bar: Takt , bpb: beat per bar
s_day, s_hour = 10, 12 # Start point in the data
mpb = 80 # minutes per beat
end_dur = 0
melody_len, start = print_dur(bar,bpb,mpb,s_day,s_hour,tune_name)
trans = met_transform(dM,[1,1,0.025,3,1.3,500,0.2,1,4.5,1,],[6,6,6,6,6,24,6,6,6,2],start)
scales = [[8,'C',major]]
end_scale = [[1,'C',P]]
pattern = pattern_gen(scales, end_scale, melody_len)
# Pressure
rythem1, notenr_1 = ran_duration([1/32,1/8, 1/4,1/2], [0,2,3,1], melody_len, end_dur)
melody1 = meteo_melody(trans[3],pattern, 42, notenr_1, rythem1,mpb)
volumes1 = ran_volume([0,90], [1,8], notenr_1 )
notes1 = NoteSeq( [Note(no,octave=0, dur=du, volume=vo) for no,du,vo in zip(melody1,rythem1,volumes1)] )
# temp
rythem2, notenr_2 = ran_duration([1/16,1/8, 1/4,1/2], [0,2,3,2], melody_len, end_dur)
melody2 = meteo_melody(trans[4],pattern, 80, notenr_2, rythem2,mpb)
volumes2 = ran_volume([0,90], [1,8], notenr_2 )
notes2 = NoteSeq( [Note(no,octave=0, dur=du, volume=vo) for no,du,vo in zip(melody2,rythem2,volumes2)] )
#timpani rain
melody3, rythem3, volumes3 = drum([1/16], [60,63],[100,127],melody_len)
volumes3 = met_vol(trans[5],0,rythem3, mpb)
notes3 = NoteSeq( [Note(no,octave=0, dur=du, volume=vo) for no,du,vo in zip(melody3,rythem3,volumes3)] )
# glob radation
rythem4, notenr_4 = ran_duration([1/32,1/16,1/8, 1/4,], [0,3,1,0], melody_len, end_dur)
melody4 = meteo_melody(trans[2],pattern, 90, notenr_4, rythem4, mpb)
volumes4 = ran_volume([0,80], [0,8], notenr_4 )
volumes4 = on_off(trans[2],[5,20000],volumes4, rythem4, mpb)
notes4 = NoteSeq( [Note(no,octave=0, dur=du, volume=vo) for no,du,vo in zip(melody4,rythem4,volumes4)] )
instruments = [0,0,47,10]
notes = [notes1,notes2,notes3,notes4]
return notes, instruments,tune_name
tune_305_A
tune_305_A
Instruments: Available are at lest the 128 General-Midi (GM) Instruments. Depending on the sound-fonts there is a bigger choice. A list of the GM instruments can be found here. https://jazz-soft.net/demo/GeneralMidi.html
Generate Midi and Audio file¶
def gen_midi():
# squezze into a MIDI framework
notes, instruments, tune_name = tune_305_A() # <--- select a tune <<-- <<<<<<<<<--- select a tune -----
nTracks = len(notes)
m = Midi(number_tracks=nTracks, tempo=120, instrument=instruments)
for iTrack in range(nTracks):
m.seq_notes(notes[iTrack], track=iTrack)
#--- write the MIDI file -----
midi_file_name = tune_name +'.mid' # set the name of the file
m.write(midi_file_name)
return midi_file_name
######--- Main ---######
midi_file_name = gen_midi()
midi_play(midi_file_name)
midi_audio(midi_file_name)
midi_png(midi_file_name)
tune_305_A: Start: 10 day 12 h End: 14.0 day 22.666666666666686 h
External Music_Generation library¶
This library changes from version to version. New or changed code is first explained above. This is a copy of music_generation.py
from pyknon.genmidi import Midi
from pyknon.music import Rest, Note, NoteSeq
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as plticker
from datetime import date
# [[[[[[[[[[[[[[[[[[[ -- Functions for Music Generation -- ]]]]]]]]]]]]]]]]]]]
def scale_create(tones):
tones = np.asarray(tones) # tones which form chord or scale in the first octave (0-11)
if any(tones > 11): # tones over one octave?
tones = np.mod(tones,12) # set the thones in one octave
tones = np.sort(tones) # sort the tones new
tones = np.unique(tones) # remove duplicate tones
octave = np.repeat( np.linspace(0,108, num=10), len(tones))
scale = np.add( octave, np.tile(tones, 10)) # add element wise octave and note
return scale.astype(int)
def fade(start,end,steps):
fade = np.around( np.linspace(start,end,num=steps))
fade = fade.astype(int)
return fade
def ran_volume(volume, prob_volume, melody_len):
volume = np.asarray(volume, dtype=int) # this are the allowed volumes of thenotes
prob_volume = np.asarray(prob_volume) # this are the probabilities how often each volume will occure
prob_volume = prob_volume/np.sum(prob_volume)
volumes = np.r_[np.random.choice(volume, size=melody_len, p=prob_volume)]
return volumes
# liniar_range: Generates an range in which the instrument can play.
def liniar_range(r_start, r_top, r_edge, r_end): # acceptance range of the instrument
h = 100 # hight of acceptance function
a_range = np.zeros(121, dtype=int) # only to midi =120 as 127 is not a complete octave
np.put(a_range, range(r_start,r_top), np.linspace(0,h, num=(r_top -r_start)) )
np.put(a_range, range(r_top, r_edge), np.linspace(h,h, num=(r_edge-r_top )) )
np.put(a_range, range(r_edge, r_end), np.linspace(h,0, num=(r_end -r_edge )) )
return a_range
# i_last_note: finds de i value of the last not in the actual scale.
def i_last_note(note, scale):
i_note = (np.abs(scale - note)).argmin()
return i_note
# intvl_next is a modification of intvl_melody. But it does only creats one interval and not an array/melody in one time.
def intvl_next(intvl, prob_intvl): #singel interval
intvl = np.asarray(intvl) # Possible interval
prob_intvl = np.asarray(prob_intvl) # Probability of each interval
prob_intvl = prob_intvl/np.sum(prob_intvl)
interval = np.random.choice(intvl, size=1, p=prob_intvl)
return interval[0]
# acceptance: accepts and refuses proposed nots with Metropolis-Hasting Algorythem.
# x is the value in the aceptance range of the current note, while x_new is it from the proposoal note
def acceptance(x, x_new):
if x_new < 1:
if x < 1: print('start_note not in range') ; x = start_note_not_in_range
quot = x_new/x
if quot >= 1: return True
if np.random.uniform(0,1)< quot: return True
else: return False
def ran_duration(duration, prob_duration, melody_len, end_dur):
duration= np.asarray(duration) # this are the allowed durations of the notes
prob_duration = np.asarray(prob_duration) # this are the probabilities how often each will occure
prob_duration = prob_duration/np.sum(prob_duration)
cumsum, melody_len, rythem = 0, melody_len/4 , np.asarray([]) #melody_len/4 as note values are quarter
while cumsum < melody_len:
note_len = np.random.choice(duration, p=prob_duration)
cumsum = cumsum + note_len
rythem = np.append(rythem,note_len)
if end_dur != 0:
rythem = np.append(rythem,end_dur)
return rythem , len(rythem)
# plot_range: plot all ranges together
def plot_range(ranges,labels,title):
fig, ax = plt.subplots()
plt.xlabel('Midi Note')
plt.ylabel('Acceptance')
plt.title(title)
for a_range, lab in zip(ranges,labels):
ax.plot(range(121), a_range,label= lab )
ax.vlines(x=np.linspace(0,108, num=10), ymin=0, ymax=10, color='grey', label='Octaves',linewidth=1) # plot octaves
plt.legend()
plt.show()
# pattern_gen takes the chord pattern (scales): it reapeats the pattern as long the melody is, and generates the beat number where the chords change.
# it also adds the end pattern
def pattern_gen(scales,end_scale, melody_len):
bpb = 4 # beats per bar
#--Add note to chord
scales = note_to_chord(scales)
end_scale = note_to_chord(end_scale)
#--scales
factor = int(np.trunc(melody_len/(np.sum(scales[:,0]) * bpb)) + 1) # factor rounded up: how many times is the pattern used
change_times = np.cumsum(np.tile(scales[:,0],factor)) * bpb # create change time list with factor
change_times = np.concatenate((np.asarray([0]),change_times))[:-1] # add 0 at beginig remove last element
for i in range(len(scales)): # send scales to scale_create
scales[i,1] = scale_create(scales[i,1])
pattern = np.tile(scales,(factor,1)) # tile the scales as long the melody is
pattern[:,0] = change_times #insert change_times into scales
#--end_scales
end_times = melody_len - np.cumsum(( end_scale[:,0]*bpb )[::-1])[::-1] # reversed cumsum subtracted of melody_len
end_scale[:,0] = end_times #insert end_times into en_scale
for i in range(len(end_scale)): # send end_scale to scale_create
end_scale[i,1] = scale_create(end_scale[i,1])
#--merge
pattern = np.delete(pattern, np.argwhere(pattern[:,0] >= end_scale[0,0]) ,0) # remove unneeded scales
pattern = np.concatenate((pattern,end_scale),axis=0)
pattern = np.delete(pattern, np.argwhere(pattern[:,0] >= melody_len) ,0) # remove if end is 0 bars
return pattern
# transforming the note name into a midi number. Add the scale with this nuber to the correct chord.
def note_to_chord(input_s):
tone_dic = { 'C' : 0 , 'C#' : 1 ,
'Db' : 1 , 'D' : 2 , 'D#' : 3 ,
'Eb' : 3 , 'E' : 4 , 'E#' : 5 ,
'Fb' : 4 , 'F' : 5 , 'F#' : 6 ,
'Gb' : 6 , 'G' : 7 , 'G#' : 8 ,
'Ab' : 8 , 'A' : 9 , 'A#' :10 ,
'Bb' : 10, 'B' :11 , 'B#' :12 ,
'Cb' : 11 }
input_s =np.asarray(input_s)
le = len(input_s)
out_s = [[0,1]]*le
for sps in range(le):
note = input_s[sps,1]
nr = tone_dic[note]
out_s[sps]= [input_s[sps,0] , input_s[sps,2] + nr]
out_s = np.asarray(out_s)
return out_s
def acceptance_melody(intvl, prob_intvl, pattern, start_note, a_range, notenr, rythem):
melody = np.zeros(notenr, dtype=int)
cum_rythem = np.cumsum(rythem) *4
cum_rythem = np.concatenate(([0],cum_rythem))[:-1] # add 0 at beginig remove last element
scale_change = pattern[:,0]
scale_nr =0
scale = pattern[scale_nr,1]
melody[0] = scale[i_last_note(start_note,scale)]
for npn in range(1, notenr): #npn: note per note (index)
scale_nr = np.ravel(np.argwhere(scale_change <= cum_rythem[npn-1])) [-1]
scale = pattern[scale_nr,1]
accept = False
while not accept: # aslong acept == False
inote = i_last_note(melody[npn-1],scale)
inote_next = inote + intvl_next(intvl, prob_intvl) # add current not with Proposition
accept_val = a_range[[melody[(npn-1)],scale[inote_next]]] # get acceptance values
accept = acceptance(accept_val[0],accept_val[1])
melody[npn] = scale[inote_next]
return melody
# [[[[[[[[[[[[[[[[[[[ -- Functions for Meteo Music -- ]]]]]]]]]]]]]]]]]]]
def meteo_melody(meteo, pattern, start_note, notenr, rythem,mpb):
melody = np.zeros(notenr, dtype=int)
cum_rythem = np.cumsum(rythem) *4
cum_rythem = np.concatenate(([0],cum_rythem)) # add 0 at beginig
scale_change = pattern[:,0]
scale_nr =0
scale = pattern[scale_nr,1]
melody[0] = scale[i_last_note(start_note,scale)]
for npn in range(1, notenr): #npn: note per note (index)
scale_nr = np.ravel(np.argwhere(scale_change <= cum_rythem[npn-1])) [-1]
scale = pattern[scale_nr,1]
# find interval
met_resolution = 10
inter = np.asarray([cum_rythem[npn-1], cum_rythem[npn]]) # get beat_nr's
inter = np.round((inter*mpb)/met_resolution).astype(int) # calulate index of the data array
intvl = meteo[inter[1]] - meteo[inter[0]] # take the diffrence of the data
intvl = np.round(intvl).astype(int) # round to an int
inote_befor = i_last_note(melody[npn-1],scale) # get i in the scale of the last note
inote = inote_befor + intvl # calculate i in scale of note
melody[npn] = scale[inote] # set in to melody

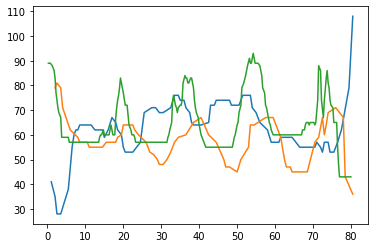

plt.plot(cum_rythem[1:],melody) ; plt.xlabel= ('beat nr.'); plt.ylabel=('midi note nr')
return melody
# Creates a regular drumm track by definig a rythmic, note and volume pattern
def drum(rythems,notes,volumes,melody_len):
ryth_rep = int((melody_len/(np.sum(rythems)*4))+1) # calculate repeat factor
rythem = np.tile(rythems,ryth_rep) # tile
rythem = np.delete(rythem, np.argwhere(np.cumsum(rythem)*4 >= melody_len)) # delete not used notes
note_nr = len(rythem)
melody_rep = int(note_nr/len(notes)+1) # calculate repeat factor
melody = np.tile(notes,melody_rep) # tile
melody = melody[:note_nr] # delete not used notes
volume_rep = int(note_nr/len(volumes)+1) # calculate repeat factor
volume = np.tile(volumes,volume_rep) # tile
volume = volume[:note_nr] # delete not used notes
return melody, rythem, volume
#Generates out of meteo data a Volume track
def met_vol(meteo, add, rythem, mpb):
met_resolution = 10
cum_ryth = np.concatenate((np.asarray([0]),np.cumsum(rythem)))[:-1] # add 0 at beginig remove last element
i_data = (cum_ryth * (mpb /met_resolution)).astype(int) # calculate index of the data
volumes = meteo[i_data].astype(int) # fill in meteo data
volumes = volumes + add # add
volumes = np.minimum(volumes, 127) # set values bigger than 127 to 127
return volumes
# [[[[[[[[[[[[[[[[[[[ -- Functions for Meteo Transformation -- ]]]]]]]]]]]]]]]]]]]
# takes the rolling mean and interpolates the meteo data for each colunm
def met_transform(dM,factors,means,start):
col_nr = dM.shape[1]-2
start = int(start*6)
cut_border = np.trunc((np.amax(means))/2).astype(int) # calculate nr of nan at the border because of the rolling mean
cut_begin = np.amax([cut_border,start])
trans = np.zeros((col_nr, (dM.shape[0] -cut_border -cut_begin)))
if col_nr != len(factors) or col_nr != len(means): print('dM,factor,mean not same length')
for nr,factor, mean in zip(range(col_nr),factors,means):
Yw = np.array(dM[dM.columns[nr +2]].rolling(window=mean,center=True).mean()) # nr+2 the first two colums are location and date.
Yw = Yw * factor
trans[nr] = Yw[cut_begin: -cut_border] # remove nan at begining and end. because of rolling mean
return trans
# Prints the end and starting point of the actual tune; Calculates melody_len and Start
def print_dur(bar,bpb,mpb,s_day,s_hour,tune_name):
start = (s_day*24)+ s_hour # start in hours
melody_len = bar * bpb
S_h = start%24
S_d = start//24
dur_h = melody_len *mpb/60
E_h = (start+dur_h)%24
E_d = (start+dur_h)//24
print(tune_name+': Start:',S_d,'day',S_h,'h End:', E_d,'day',E_h,'h')
return melody_len, start
# [[[[[[[[[[[[[[[[[[[ -- Functions for Sound generation -- ]]]]]]]]]]]]]]]]]]]
import subprocess
default_soundfont = '/usr/share/sounds/sf3/MuseScore_General.sf3'
def midi_play(midi_in, soundfont= default_soundfont):
subprocess.call(['cvlc', midi_in , 'vlc://quit', '--soundfont', '/home/viturin/-vitis/Documents/MuseScore2/Soundfonts/Compifont_13082016.sf2']) # cvlc = vlc without gui
def midi_audio(midi_in, name_out = 'none', soundfont= default_soundfont):
if name_out == 'none' :
name_out = midi_in.replace('.mid', '.flac')
else:
name_out = name_out + '.flac'
subprocess.call(['mscore', '-o', name_out, midi_in]) # -o = export as
def midi_png(midi_in, name_out = 'none'):
if name_out == 'none' :
name_out = midi_in.replace('.mid', '.png')
else:
name_out = name_out + '.png'
subprocess.call(['mscore', '-o', name_out, '-T', '2', midi_in]) # -o = export as , -T 2 = cut page with 2 pixel
