3.04 Improving Drum¶
- Split met_percussion in different functions and improved them. So they can also be used differently.
- Create print start end_, drum and meteorological volume functions.
- Weather period from 1.8.2019 to 28.8.2019
from pyknon.genmidi import Midi
from pyknon.music import Rest, Note, NoteSeq
from music_generation import*
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as plticker
from datetime import date
Read Meteorological Data¶
def read_meteo_data(fName):
colNames = ['Stao','time', 'T_Boden_20cm', 'Flash_30km', 'Glob_rad', 'QFE','T_2m','Rain_Sum','H_rel','visibi','V_wind','direction_wind']
df = pd.read_csv(fName,sep=';', skiprows=3, names=colNames, na_values='-')
print(df.head())
return df
fPath = '/mnt/daten/04_Schule/42_Kanti/Matrua/Music_generation/Organisation/MeteoSchweiz/Daten/'
fName = 'order_75330_data.txt'
dM = read_meteo_data(fPath+fName)
NT, MP = dM.shape
Stao time T_Boden_20cm Flash_30km Glob_rad QFE T_2m 0 KLO 201908010000 21.5 0 2 969.5 15.3 1 KLO 201908010010 21.5 0 2 969.5 14.9 2 KLO 201908010020 21.5 0 2 969.5 14.6 3 KLO 201908010030 21.5 0 2 969.5 14.6 4 KLO 201908010040 21.4 0 2 969.6 13.7 Rain_Sum H_rel visibi V_wind direction_wind 0 0.0 80.4 20000.0 0.9 117 1 0.0 82.4 20000.0 1.1 98 2 0.0 83.7 20000.0 1.0 121 3 0.0 82.7 20000.0 1.2 119 4 0.0 88.8 20000.0 1.0 173
Chords and scales¶
C = np.array([ 0, 4, 7])
Cm = np.array([ 0, 3, 7])
Cdim = np.array([ 0, 3, 6])
CM7 = np.array([ 0, 4, 7, 11])
C7 = np.array([ 0, 4, 7, 10])
Cm7 = np.array([ 0, 3, 7, 10])
Cdim7 = np.array([ 0, 3, 6, 10])
Cdim6 = np.array([ 0, 3, 6, 9 ])
C6 = np.array([ 0, 4, 7, 9 ]) # inversion of Am7
Cm6 = np.array([ 0, 3, 7, 9 ])
Csus4 = np.array([ 0, 5, 7])
Csus2 = np.array([ 0, 2, 7])
Csus47= np.array([ 0, 5, 7, 10])
P = np.array([ 0,7]) # Power chord (Perfect unison, Perfect fifth)
B = np.array([ 0]) # Bass (Perfect unison)
major = np.array([ 0, 2, 4, 5, 7, 9, 11])
minor = np.array([ 0, 2, 3, 5, 7, 8, 10])
blues = np.array([ 0, 3, 5, 6, 7, 10])
Drum¶
- Together with on_off and met_vol it replaces met_percus of the previous version.
- Creates a regular drum track by defining a rhythmic, note and volume pattern.
- the volume can be overwritten be the met_vol function.
def drum(rythems,notes,volumes,melody_len):
ryth_rep = int((melody_len/(np.sum(rythems)*4))+1) # calculate repeat factor
rythem = np.tile(rythems,ryth_rep) # tile
rythem = np.delete(rythem, np.argwhere(np.cumsum(rythem)*4 >= melody_len)) # delete not used notes
note_nr = len(rythem)
melody_rep = int(note_nr/len(notes)+1) # calculate repeat factor
melody = np.tile(notes,melody_rep) # tile
melody = melody[:note_nr] # delete not used notes
volume_rep = int(note_nr/len(volumes)+1) # calculate repeat factor
volume = np.tile(volumes,volume_rep) # tile
volume = volume[:note_nr] # delete not used notes
return melody, rythem, volume
Meteorological Volume¶
- Generates out of meteorological data a Volume track.
- Uses the rhythm to calculate the position in the meteorological data.
- Volumes can be in or decreased by a value (add).
- Maximum value is 127 as this is the maximum MIDI-Volume.
def met_vol(meteo, add, rythem, mpb):
met_resolution = 10
cum_ryth = np.concatenate((np.asarray([0]),np.cumsum(rythem)))[:-1] # add 0 at beginig remove last element
i_data = (cum_ryth * (mpb /met_resolution)).astype(int) # calculate index of the data
volumes = meteo[i_data].astype(int) # fill in meteo data
volumes = volumes + add # add
volumes = np.minimum(volumes, 127) # set values bigger than 127 to 127
return volumes
Print Start and End¶
- Prints the end and starting point of the actual tune.
- Calculates melody_len and Start
def print_dur(bar,bpb,mpb,s_day,s_hour,tune_name):
start = (s_day*24)+ s_hour # start in hours
melody_len = bar * bpb
S_h = start%24
S_d = start//24
dur_h = melody_len *mpb/60
E_h = (start+dur_h)%24
E_d = (start+dur_h)//24
print(tune_name+': Start:',S_d,'day',S_h,'h End:', E_d,'day',E_h,'h')
return melody_len, start
tune 304_A¶
- This tune is similar to the previous one. but the function used where changed and improved.
- Period from 5.8 to 7.8.2019
def tune_304_A():
tune_name = 'tune_304_A'
#np.random.seed(56)
bar, bpb = 15, 4 # bar: Takt , bpb: beat per bar
s_day, s_hour = 4, 18 # Start point in the data
mpb = 60 # minutes per beat
end_dur = 0
melody_len, start = print_dur(bar,bpb,mpb,s_day,s_hour,tune_name)
trans = met_transform(dM,[1,1,1,4,1.3,400,0.2,1,4.5,1,],[6,6,6,6,6,24,6,6,6,2],start)
scales = [[8,'C',major]]
end_scale = [[1,'C',P]]
pattern = pattern_gen(scales, end_scale, melody_len)
# Pressure
range_1 = liniar_range(0,0,0,0)
rythem1, notenr_1 = ran_duration([1/32,1/8, 1/4,1/2], [0,2,3,1], melody_len, end_dur)
melody1 = meteo_melody(trans[3],pattern, 60, range_1, notenr_1, rythem1,mpb)
volumes1 = ran_volume([0,100], [1,8], notenr_1 )
notes1 = NoteSeq( [Note(no,octave=0, dur=du, volume=vo) for no,du,vo in zip(melody1,rythem1,volumes1)] )
# temp
range_2 = liniar_range(0,0,0,0)
rythem2, notenr_2 = ran_duration([1/16,1/8, 1/4,1/2], [0,2,3,2], melody_len, end_dur)
melody2 = meteo_melody(trans[4],pattern, 80, range_2, notenr_2, rythem2,mpb)
volumes2 = ran_volume([0,100], [1,8], notenr_2 )
notes2 = NoteSeq( [Note(no,octave=0, dur=du, volume=vo) for no,du,vo in zip(melody2,rythem2,volumes2)] )
#timpani rain
melody3, rythem3, volumes3 = drum([1/16,1.5/16], [60,63,66],[100,127],melody_len)
volumes3 = met_vol(trans[5],0,rythem3, mpb)
notes3 = NoteSeq( [Note(no,octave=0, dur=du, volume=vo) for no,du,vo in zip(melody3,rythem3,volumes3)] )
instruments = [48,48,47]
notes = [notes1,notes2,notes3]
return notes, instruments,tune_name
tune_304_A
tune_304_A
Instruments: Available are at lest the 128 General-Midi (GM) Instruments. Depending on the sound-fonts there is a bigger choice. A list of the GM instruments can be found here. https://jazz-soft.net/demo/GeneralMidi.html
Generate Midi and Audio file¶
def gen_midi():
# squezze into a MIDI framework
notes, instruments, tune_name = tune_304_A() # <--- select a tune <<-- <<<<<<<<<--- select a tune -----
nTracks = len(notes)
m = Midi(number_tracks=nTracks, tempo=120, instrument=instruments)
for iTrack in range(nTracks):
m.seq_notes(notes[iTrack], track=iTrack)
#--- write the MIDI file -----
midi_file_name = tune_name +'.mid' # set the name of the file
m.write(midi_file_name)
return midi_file_name
######--- Main ---######
midi_file_name = gen_midi()
midi_play(midi_file_name)
midi_audio(midi_file_name)

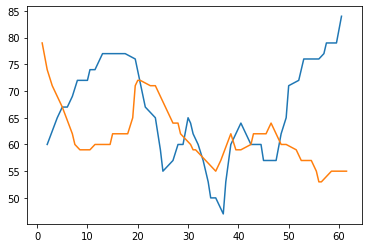

midi_png(midi_file_name)
tune_304_A: Start: 4 day 18 h End: 7.0 day 6.0 h
External Music_Generation library¶
This library changes from version to version. New or changed code is first explained above. This is a copy of music_generation.py
from pyknon.genmidi import Midi
from pyknon.music import Rest, Note, NoteSeq
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as plticker
from datetime import date
# [[[[[[[[[[[[[[[[[[[ -- Functions for Music Generation -- ]]]]]]]]]]]]]]]]]]]
def scale_create(tones):
tones = np.asarray(tones) # tones which form chord or scale in the first octave (0-11)
if any(tones > 11): # tones over one octave?
tones = np.mod(tones,12) # set the thones in one octave
tones = np.sort(tones) # sort the tones new
tones = np.unique(tones) # remove duplicate tones
octave = np.repeat( np.linspace(0,108, num=10), len(tones))
scale = np.add( octave, np.tile(tones, 10)) # add element wise octave and note
return scale.astype(int)
def fade(start,end,steps):
fade = np.around( np.linspace(start,end,num=steps))
fade = fade.astype(int)
return fade
def ran_volume(volume, prob_volume, melody_len):
volume = np.asarray(volume, dtype=int) # this are the allowed volumes of thenotes
prob_volume = np.asarray(prob_volume) # this are the probabilities how often each volume will occure
prob_volume = prob_volume/np.sum(prob_volume)
volumes = np.r_[np.random.choice(volume, size=melody_len, p=prob_volume)]
return volumes
# liniar_range: Generates an range in which the instrument can play.
def liniar_range(r_start, r_top, r_edge, r_end): # acceptance range of the instrument
h = 100 # hight of acceptance function
a_range = np.zeros(121, dtype=int) # only to midi =120 as 127 is not a complete octave
np.put(a_range, range(r_start,r_top), np.linspace(0,h, num=(r_top -r_start)) )
np.put(a_range, range(r_top, r_edge), np.linspace(h,h, num=(r_edge-r_top )) )
np.put(a_range, range(r_edge, r_end), np.linspace(h,0, num=(r_end -r_edge )) )
return a_range
# i_last_note: finds de i value of the last not in the actual scale.
def i_last_note(note, scale):
i_note = (np.abs(scale - note)).argmin()
return i_note
# intvl_next is a modification of intvl_melody. But it does only creats one interval and not an array/melody in one time.
def intvl_next(intvl, prob_intvl): #singel interval
intvl = np.asarray(intvl) # Possible interval
prob_intvl = np.asarray(prob_intvl) # Probability of each interval
prob_intvl = prob_intvl/np.sum(prob_intvl)
interval = np.random.choice(intvl, size=1, p=prob_intvl)
return interval[0]
# acceptance: accepts and refuses proposed nots with Metropolis-Hasting Algorythem.
# x is the value in the aceptance range of the current note, while x_new is it from the proposoal note
def acceptance(x, x_new):
if x_new < 1:
if x < 1: print('start_note not in range') ; x = start_note_not_in_range
quot = x_new/x
if quot >= 1: return True
if np.random.uniform(0,1)< quot: return True
else: return False
def ran_duration(duration, prob_duration, melody_len, end_dur):
duration= np.asarray(duration) # this are the allowed durations of the notes
prob_duration = np.asarray(prob_duration) # this are the probabilities how often each will occure
prob_duration = prob_duration/np.sum(prob_duration)
cumsum, melody_len, rythem = 0, melody_len/4 , np.asarray([]) #melody_len/4 as note values are quarter
while cumsum < melody_len:
note_len = np.random.choice(duration, p=prob_duration)
cumsum = cumsum + note_len
rythem = np.append(rythem,note_len)
if end_dur != 0:
rythem = np.append(rythem,end_dur)
return rythem , len(rythem)
# plot_range: plot all ranges together
def plot_range(ranges,labels,title):
fig, ax = plt.subplots()
plt.xlabel('Midi Note')
plt.ylabel('Acceptance')
plt.title(title)
for a_range, lab in zip(ranges,labels):
ax.plot(range(121), a_range,label= lab )
ax.vlines(x=np.linspace(0,108, num=10), ymin=0, ymax=10, color='grey', label='Octaves',linewidth=1) # plot octaves
plt.legend()
plt.show()
# pattern_gen takes the chord pattern (scales): it reapeats the pattern as long the melody is, and generates the beat number where the chords change.
# it also adds the end pattern
def pattern_gen(scales,end_scale, melody_len):
bpb = 4 # beats per bar
#--Add note to chord
scales = note_to_chord(scales)
end_scale = note_to_chord(end_scale)
#--scales
factor = int(np.trunc(melody_len/(np.sum(scales[:,0]) * bpb)) + 1) # factor rounded up: how many times is the pattern used
change_times = np.cumsum(np.tile(scales[:,0],factor)) * bpb # create change time list with factor
change_times = np.concatenate((np.asarray([0]),change_times))[:-1] # add 0 at beginig remove last element
for i in range(len(scales)): # send scales to scale_create
scales[i,1] = scale_create(scales[i,1])
pattern = np.tile(scales,(factor,1)) # tile the scales as long the melody is
pattern[:,0] = change_times #insert change_times into scales
#--end_scales
end_times = melody_len - np.cumsum(( end_scale[:,0]*bpb )[::-1])[::-1] # reversed cumsum subtracted of melody_len
end_scale[:,0] = end_times #insert end_times into en_scale
for i in range(len(end_scale)): # send end_scale to scale_create
end_scale[i,1] = scale_create(end_scale[i,1])
#--merge
pattern = np.delete(pattern, np.argwhere(pattern[:,0] >= end_scale[0,0]) ,0) # remove unneeded scales
pattern = np.concatenate((pattern,end_scale),axis=0)
pattern = np.delete(pattern, np.argwhere(pattern[:,0] >= melody_len) ,0) # remove if end is 0 bars
return pattern
# transforming the note name into a midi number. Add the scale with this nuber to the correct chord.
def note_to_chord(input_s):
tone_dic = { 'C' : 0 , 'C#' : 1 ,
'Db' : 1 , 'D' : 2 , 'D#' : 3 ,
'Eb' : 3 , 'E' : 4 , 'E#' : 5 ,
'Fb' : 4 , 'F' : 5 , 'F#' : 6 ,
'Gb' : 6 , 'G' : 7 , 'G#' : 8 ,
'Ab' : 8 , 'A' : 9 , 'A#' :10 ,
'Bb' : 10, 'B' :11 , 'B#' :12 ,
'Cb' : 11 }
input_s =np.asarray(input_s)
le = len(input_s)
out_s = [[0,1]]*le
for sps in range(le):
note = input_s[sps,1]
nr = tone_dic[note]
out_s[sps]= [input_s[sps,0] , input_s[sps,2] + nr]
out_s = np.asarray(out_s)
return out_s
def acceptance_melody(intvl, prob_intvl, pattern, start_note, a_range, notenr, rythem):
melody = np.zeros(notenr, dtype=int)
cum_rythem = np.cumsum(rythem) *4
cum_rythem = np.concatenate(([0],cum_rythem))[:-1] # add 0 at beginig remove last element
scale_change = pattern[:,0]
scale_nr =0
scale = pattern[scale_nr,1]
melody[0] = scale[i_last_note(start_note,scale)]
for npn in range(1, notenr): #npn: note per note (index)
scale_nr = np.ravel(np.argwhere(scale_change <= cum_rythem[npn-1])) [-1]
scale = pattern[scale_nr,1]
accept = False
while not accept: # aslong acept == False
inote = i_last_note(melody[npn-1],scale)
inote_next = inote + intvl_next(intvl, prob_intvl) # add current not with Proposition
accept_val = a_range[[melody[(npn-1)],scale[inote_next]]] # get acceptance values
accept = acceptance(accept_val[0],accept_val[1])
melody[npn] = scale[inote_next]
return melody
def meteo_melody(meteo, pattern, start_note, a_range, notenr, rythem,mpb):
melody = np.zeros(notenr, dtype=int)
cum_rythem = np.cumsum(rythem) *4
cum_rythem = np.concatenate(([0],cum_rythem)) # add 0 at beginig
scale_change = pattern[:,0]
scale_nr =0
scale = pattern[scale_nr,1]
melody[0] = scale[i_last_note(start_note,scale)]
for npn in range(1, notenr): #npn: note per note (index)
scale_nr = np.ravel(np.argwhere(scale_change <= cum_rythem[npn-1])) [-1]
scale = pattern[scale_nr,1]
# find interval
met_resolution = 10
inter = np.asarray([cum_rythem[npn-1], cum_rythem[npn]]) # get beat_nr's
inter = np.round((inter*mpb)/met_resolution).astype(int) # calulate index of the data array
intvl = meteo[inter[1]] - meteo[inter[0]] # take the diffrence of the data
intvl = np.round(intvl).astype(int) # round to an int
inote_befor = i_last_note(melody[npn-1],scale) # get i in the scale of the last note
inote = inote_befor + intvl # calculate i in scale of note
melody[npn] = scale[inote] # set in to melody
plt.plot(cum_rythem[1:],melody) ; plt.xlabel= ('beat nr.'); plt.ylabel=('midi note nr')
return melody
# [[[[[[[[[[[[[[[[[[[ -- Functions for Meteo Transformation -- ]]]]]]]]]]]]]]]]]]]
# takes the rolling mean and interpolates the meteo data for each colunm
def met_transform(dM,factors,means,start):
col_nr = dM.shape[1]-2
start = int(start*6)
cut_border = np.trunc((np.amax(means))/2).astype(int) # calculate nr of nan at the border because of the rolling mean
cut_begin = np.amax([cut_border,start])
trans = np.zeros((col_nr, (dM.shape[0] -cut_border -cut_begin)))
if col_nr != len(factors) or col_nr != len(means): print('dM,factor,mean not same length')
for nr,factor, mean in zip(range(col_nr),factors,means):
Yw = np.array(dM[dM.columns[nr +2]].rolling(window=mean,center=True).mean()) # nr+2 the first two colums are location and date.
Yw = Yw * factor
trans[nr] = Yw[cut_begin: -cut_border] # remove nan at begining and end. because of rolling mean
return trans
# [[[[[[[[[[[[[[[[[[[ -- Functions for Sound generation -- ]]]]]]]]]]]]]]]]]]]
import subprocess
default_soundfont = '/usr/share/sounds/sf3/MuseScore_General.sf3'
def midi_play(midi_in, soundfont= default_soundfont):
subprocess.call(['cvlc', midi_in , 'vlc://quit', '--soundfont', '/home/viturin/-vitis/Documents/MuseScore2/Soundfonts/Compifont_13082016.sf2']) # cvlc = vlc without gui
def midi_audio(midi_in, name_out = 'none', soundfont= default_soundfont):
if name_out == 'none' :
name_out = midi_in.replace('.mid', '.flac')
else:
name_out = name_out + '.flac'
subprocess.call(['mscore', '-o', name_out, midi_in]) # -o = export as
def midi_png(midi_in, name_out = 'none'):
if name_out == 'none' :
name_out = midi_in.replace('.mid', '.png')
else:
name_out = name_out + '.png'
subprocess.call(['mscore', '-o', name_out, '-T', '2', midi_in]) # -o = export as , -T 2 = cut page with 2 pixel
